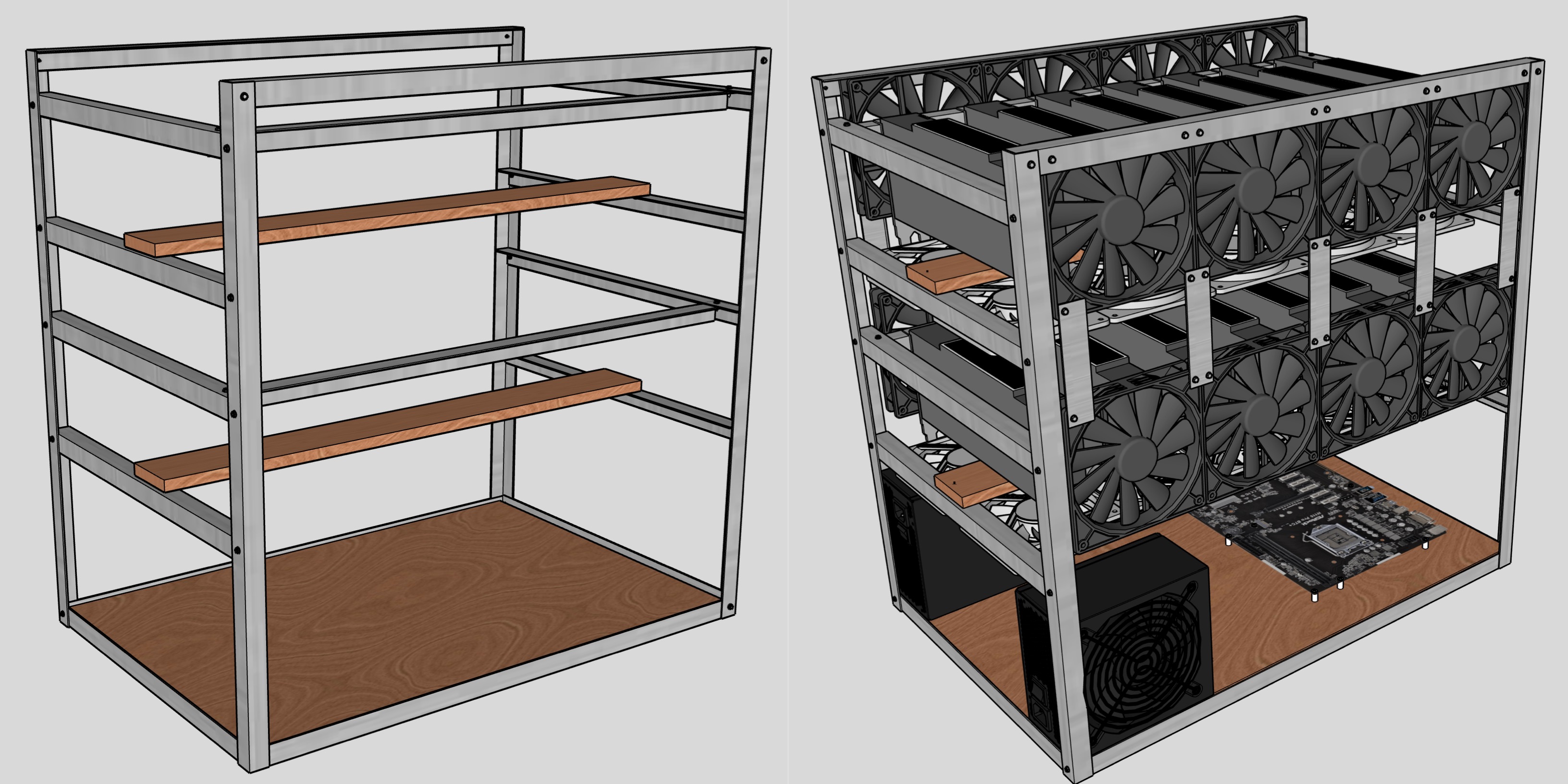

14 GPU Mining Rig Frame - DIY Building Guide with Instructions & Blueprints
- INTRODUCTION -
This mining frame build guide was made by Seb of Sebs Fintech Channel on YouTube. Subscribe to his channel for other crypto mining related content by clicking this link:
https://www.youtube.com/channel/UCQzug7Uk2Z9LcvCpYqeJO9g
- FEATURES -
-Can hold at least up to 14 GPUs easily
The frame can fit GPUs up to a length of 320mm, or even longer if you decide to not place fans on the side at the front of the frame. The frame comfortably holds up to 14 GPUs, but you can actually fit even more than that if you decide to mount them closer to each other. Just keep in mind that mounting GPUs that close to each other can cause heat to build up which could lead to thermal throttling and potentially damage your hardware if proper cooling is not applied.
- Can hold up to 36 fans
The frame is designed to fit up to 36 fans which can be placed in many different configurations. The placement of the fans allow them to blow both along the length of the GPUs as well as up through the GPUs. This means that air can move freely through the heat sink irregardless if your GPUs have horizontally or vertically aligned heat sinks, or both. The fans can also be placed to either push cool air in or pull hot air out, or a combination of both. It’s all up to you!
- Plenty of space for other components
You can comfortably fit your motherboard and several power supplies on the bottom plate of the rig. There is actually enough room to fit up to 4 ATX power supplies on this mining frame!
- Cheap, easy, available and customized to your needs
Whenever there is a new crypto mining boom, ready-made mining frames always skyrocket in price and sell out. With this guide you don’t have to worry about any of that, as building a frame yourself is always cheap and the materials are readily available at hardware stores. And not only that, but since you are building the frame yourself, you can customize it to your needs in terms of the amount of GPUs you want to mount and how widely you want them spaced out, how many fans you want to mount and in what direction you want them to move air, how many power supplies you want and where on the bottom plate you want your power supplies and motherboard to go, layout-wise.
